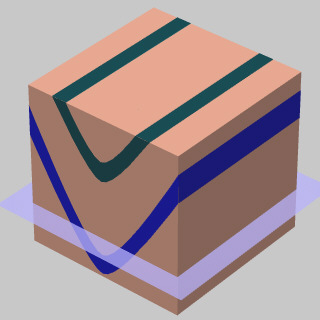

Play the movie to cut into the block, from top to bottom, so that it matches the cutting plane shown in the image above the block. Sketch the resulting block on the worksheet (F-2). Think about the orientation of the folded layers as you cut.
Play the movie to cut into the block, from top to bottom, so that it matches the cutting plane shown in the image above the block. Sketch the resulting block on the worksheet (F-2). Think about the orientation of the folded layers as you cut. |
|
|
|
|
|
Folds - Horizontal Syncline |
|
